The Original Roof Pipe Supports
Where it all began. As rooftops became more technically advanced (read: expensive), the use of wood blocks and other unsophisticated pipe / conduit roof blocks simply would no longer work.
Pipe Pier developed one of the first engineered rooftop support blocks using a foam-based platform and integrated steel strut. Versatile and effective, the CLASSIC SERIES have withstood the test of time.
The Pipe Pier Classic roof pipe supports are available in two formats – the 4″ 50H4 and the 6″ 50H6.

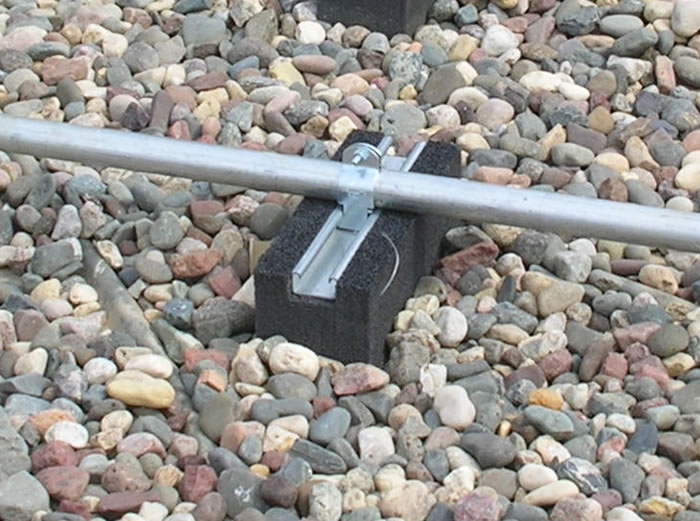

Pipe Pier® Classic 50H4
Specifications
| Rooftop Working Load (calculated at < 2 psi) | 50 lbs |
| Height | 4" |
| Length | 10.5" |
| Width (base) | 4" |
| Weight | 1.06 lbs |
| Packaging | 10 units / bundle |
| Pallet Quantity | 400 |
| Part # | PP50H4 |
| Included strut | 1 5/8" x 13/16" x 10" 14 ga Galvanized |
| Installation Instructions | View PDF |
| Pipe Load Calculation / Spacing | View PDF |
| Conduit Load Calculation / Spacing | View PDF |
NOTE: Please consult roofing manufacturer or project engineer for maximum allowable rooftop load.

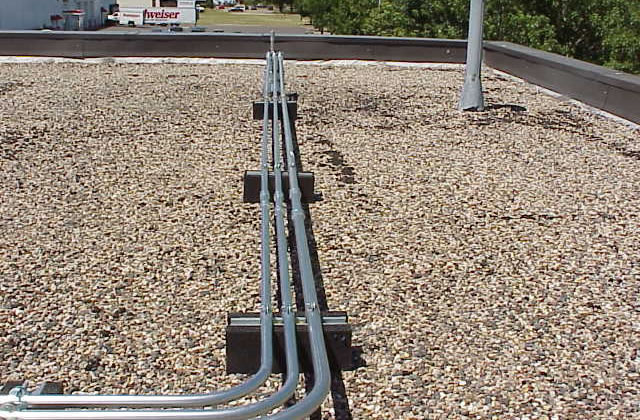

Pipe Pier® Classic 50H6
Specifications
| Rooftop Working Load (calculated at < 2 psi) | 50 lbs |
| Height | 6" |
| Length | 10.5" |
| Width (base) | 4" |
| Weight | 1.25 lbs |
| Packaging | 10 units / bundle |
| Pallet Quantity | 320 |
| Part # | PP50H6 |
| Included strut | 1 5/8" x 13/16" x 10" 14 ga Galvanized |
| Installation Instructions | View PDF |
| Pipe Load Calculation / Spacing | View PDF |
| Conduit Load Calculation / Spacing | View PDF |
NOTE: Please consult roofing manufacturer or project engineer for maximum allowable rooftop load.
If you have any questions about the Pipe Pier® Classic roof pipe support, the new line of Atlas All-In-One pipe and conduit supports, or the Pipe Pier® Elite roof blocks, which are ideal for small pipe and conduit, please contact us with the information about your rooftop support needs.
